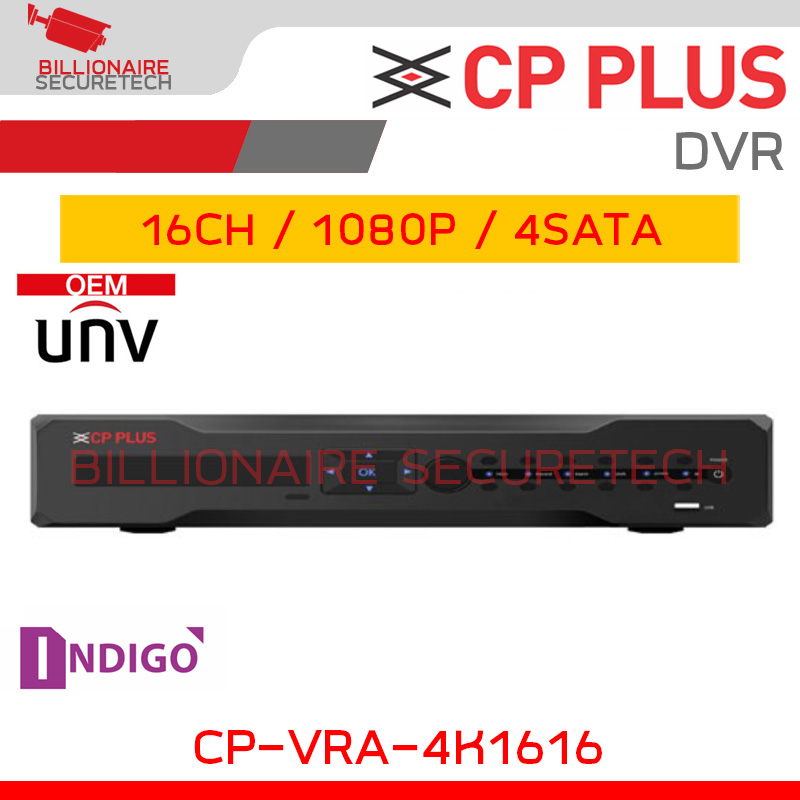

CP PLUS CP-VRA-4K1616 DVR 16CH 1080P 4SATA H.264 OEM UNIVIEW BY BILLIONAIRE SECURETECH CP-VRA-4K1616

CP-VRA-4K1616

16 Ch. 1080P Indigo DVR

H.264 dual-stream video compression

All channel 1080P Non-Realtime Recording

Support AHD, TVI,CVI, CVBS, IP Video input

HDMI / VGA simultaneous video output

Support 4 SATA HDD up to 32TB, 3 USB2.0

Mobile Software: Android, iOS

CMS Software: CMS

Processor High performance embedded microprocessor

Operating System Embedded LINUX

User Interface GUI

Video Input 16 channel, BNC

Video Output 1 HDMI, 1 VGA

Video Standard Analog: 16Ch. @1080P(12fps) , 8Ch. @1080P , 16Ch. @1080N , Hybird: 8Ch. @1080P (analog)+8Ch. @1080P (ip) , IP: 4Ch. @5M , 8Ch. @3M , 8Ch. @1080P+8Ch. @960P

Compression H.264 / G.711a

Video Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Audio Input 16 channel

Audio Output 1 channel

Alarm Input 16 Channel

Alarm Output 4 Channel

Hard Disk 4 SATA port, up to 32TB

Smart Phone iPhone, iPad, Android

HDD Management HDD Storage, Network Storage

Recording Mode Manual>Alarm>Motion detection>Timing

Search Mode search by Time/Calendar/Event/Channel

Playback 16 Ch.

Backup Mode Network, USB, SATA

Interface Ports 3 USB 2.0, 1 RS485, 1 RJ45

Ethernet RJ45 10M/100M Adaptive Ethernet port

Protocols ONVIF Supports

Power Supply 12V/6A

Power Consumption <10W(Without HDD)

Working Temp 0 °C - + 55 °C, 10% -90% RH

Dimension 440mm(L) x 400.5mm(W) x 60mm(H)

Weight 4KG
