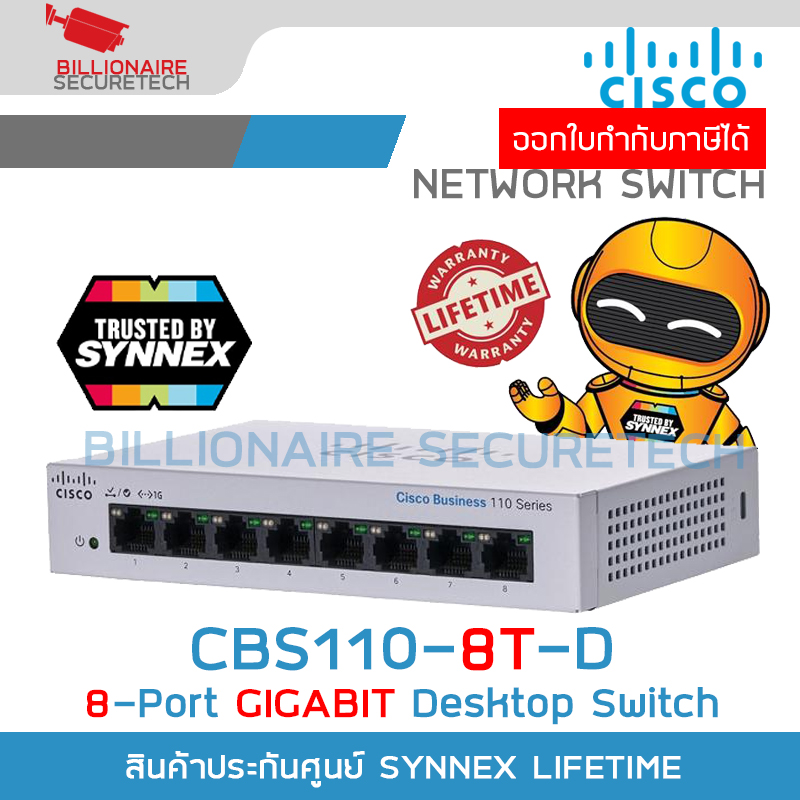

CISCO CBS110-8T-D : 8-Ports Gigabit 10/100/1000 Mbps Unmanaged Desktop Plug-and-Play Switch BY BILLIONAIRE SECURETECH CBS110-8T-D

Cisco CBS110-8T-D

8-Ports Gigabit 10/100/1000 Mbps Unmanaged Desktop

Plug-and-Play Switch

ประเภทอุปกรณ์

อุปกรณ์กิกะบิตสวิทช์ 8 พอร์ท 10/100/1000 Mbps แบบ RJ-45 ชนิดเดสก์ท็อป เหมาะสำหรับใช้งานเพื่อเชื่อมต่อ ระบบเครือข่ายความเร็วสูงมาก

Format & Standards

Format : Desktop

Network Management Type : Unmanaged

Performance

Capacity in millions of packets per second (mpps) (64-byte packets) : 11.9 mpps

Switching capacity in gigabits per second (Gbps) : 16 Gbps

Ports & Interface

Primary Ports : 8 x RJ45

Primary Port Speed : 10/100/1000Mbps

Data Transmission

Head-of-line (HOL) blocking HOL blocking prevention

MAC Address Table : 8K

Jumbo Frames : 9216 bytes

Quality of Service (QoS) : 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)

Loop detection : Helps discover loops in the network to avoid broadcast storms

Cable diagnostics : Quickly identify and troubleshoot network cable faults and/or shorts

Media-dependent interface : Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)

Standards : IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet

Power

CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A

Details

Buffer Memory : 2 Mbit

LED : Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE,. *if present

Power : 110V=4.09W , 220V=4.13W

Dimensions & Weight

Dimensions : 4.33" x 2.95" x 1.18"

Weight : 0.52 lb.

Environmental

Temperature : Operating temperature: 32° to 104°F (0° to 40°C)Storage temperature: -4° to 158°F (-20° to 70°C)

Humidity : Operating humidity: 10% to 90%, relative, noncondensingStorage humidity: 5% to 90%, relative, noncondensing

Packaging

Package Contents : Cisco Business 110 Series switchPower cord or adapterQuick start guideMounting kit
